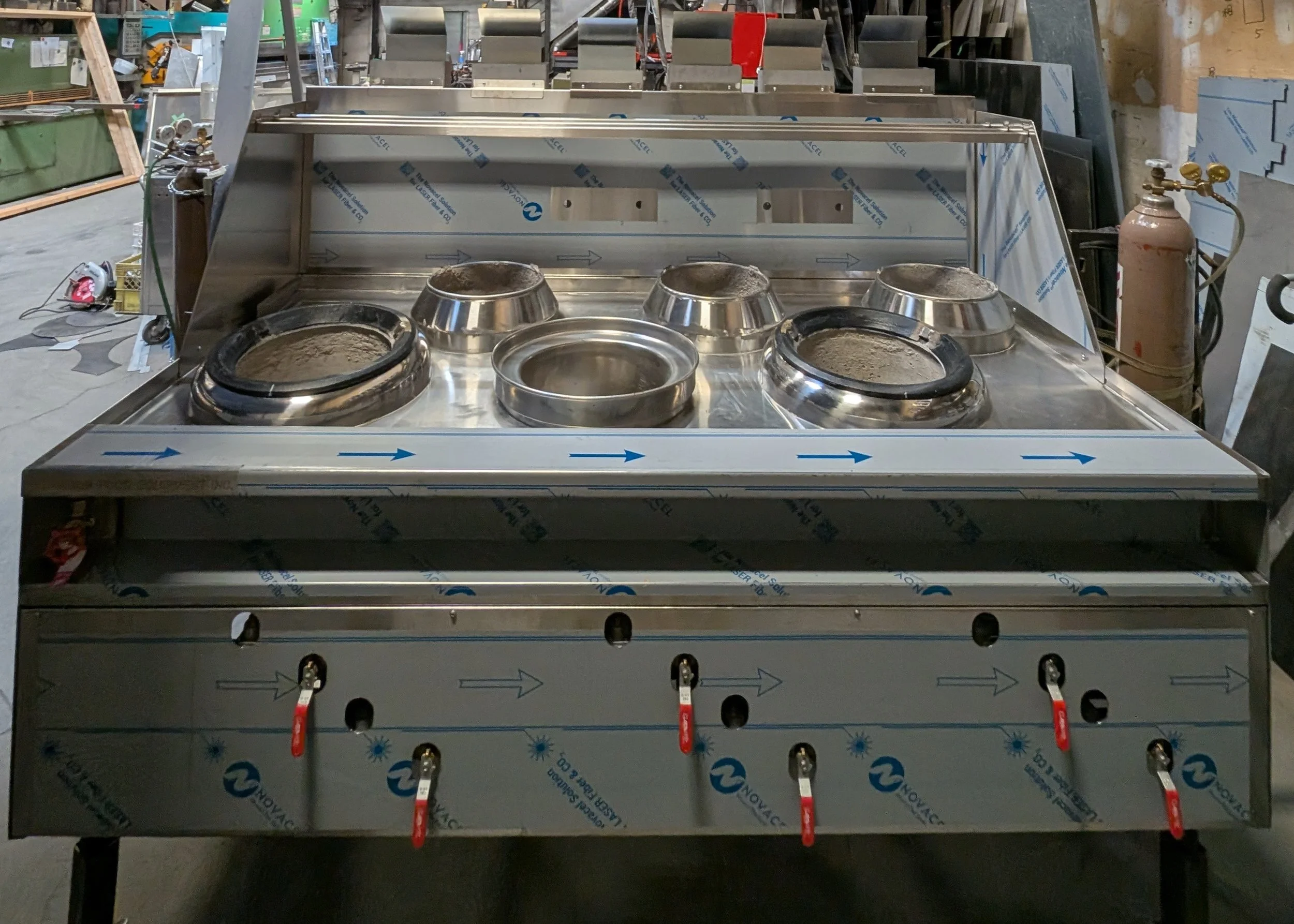

Six Burner Hole Wok Range


Specifications

  • constructed mainly out of stainless steel 304 for the front, top and sides, with rear metal chimney for exhausting heat

  • includes a small removable waste basket

  • features a standard water-cooled top surface

  • back drain is standard (front option available)

  • inside burner hole is moulded with high-temperature cement

  • regular cast iron jet burner (natural gas) - [Note: Other gas types not available at this time]

  • burner manual control valve at the front

  • BTU/hr: 630,000 (23-tip jet burner X 6) - [Note: Some configurations may use a 10-tip jet burner or 32-tip jet burner for certain burner holes]

Dimensions (approx.)

  • Length: can be customized based on the fry wok diameter size and type (please specify), and desired overall length

  • Depth: ~ 39”

  • Height: ~ 63” (measured to the chimney)

Certification

  • certified for use in Canada

Upgrade Options: (available on some configurations/models)

  • back side height extension

  • depth change (for certain configurations/model/wok size/type only)

  • left and right sides extension

  • front drain change

  • front top section extension

  • ignitor button addition

  • indented section modification

  • drain and waste basket modification

  • waterfall wash change

  • additional custom sauce tray

  • additional custom top hoop

  • other customization items upon request

  • faucet turn on at the front (with faucet purchase)

  • upgrade to 32-tip jet burner (for certain configurations/model/wok size/type only)

  • upgrade to turbo burner (for certain configurations/model/wok size/type only, and requires electrical connection)
