Cooking Ranges > Noodle Cooker RangeNoodle Cooker Range
ETL certified noodle range.
Please scroll below for examples.
Noodle Cooker Range
(a.k.a. chinese noodle range, commercial noodle range, chinese noodle cooker, gas noodle cooker, natural gas noodle cooker, natural gas noodle range, noodle cooker range, noodle range, pasta cooker, pasta range, commercial pasta range, asian noodle range, asian pasta range)
Dragon’s custom noodle range is built in-house to ensure quality, and is suitable for cooking different types of noodles. The range is mainly constructed out of food-grade stainless steel 304, which is acceptable for use in commercial food establishments, kitchens, restaurants, etc. It comes with a perforated top cover with circular holes to fit a standard size noodle sieve or strainer.
The length can be custom-built as per customer’s kitchen requirements.
When ordering, please specify the number of perforated holes (i.e., 1, 4, 6, 7, 9, 12) and the configuration type (rectangular top cover, circular top cover). Please refer to examples below.

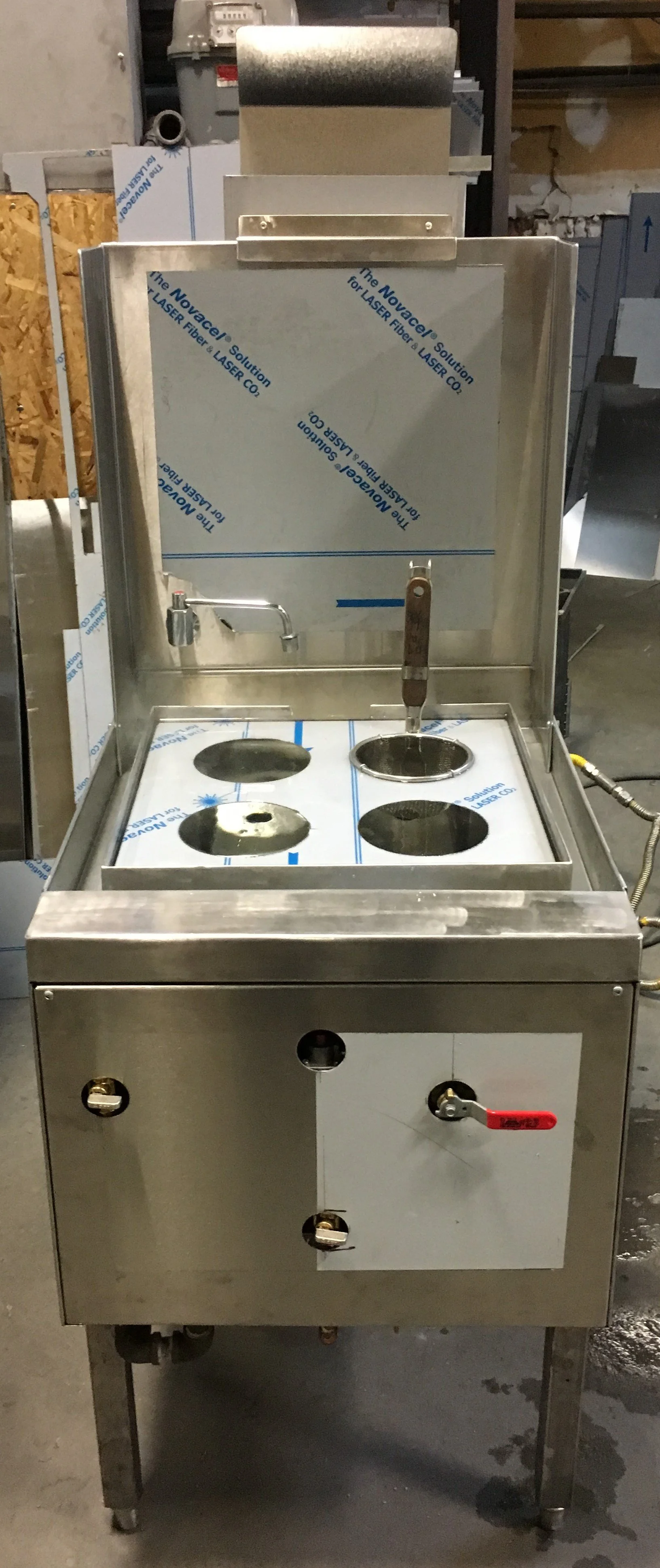

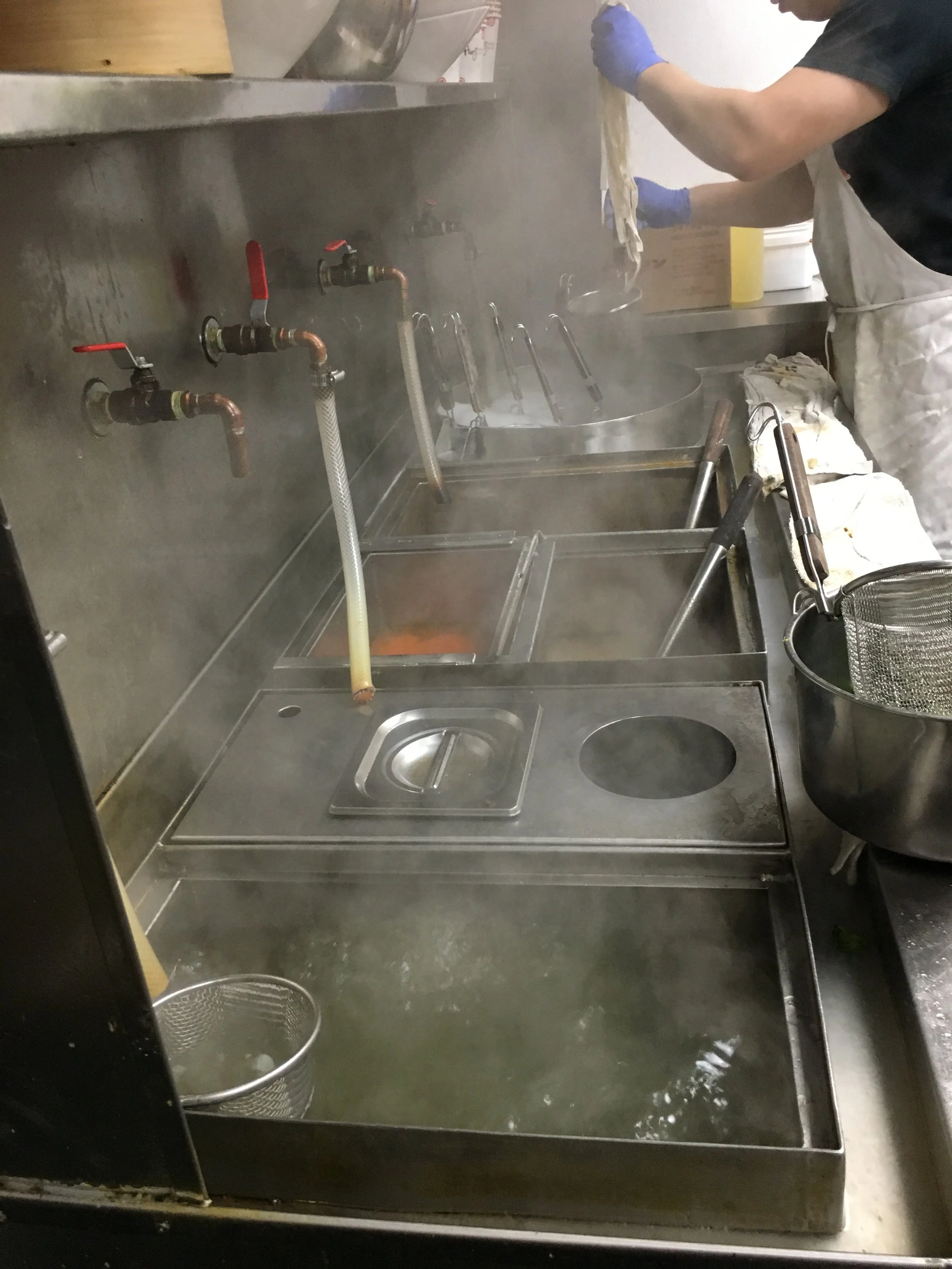

Below are examples of the noodle ranges we have built for our customers. Every customer's needs are different, our sales team will work with you and/or your chef to ensure that the noodle range is suitable for its purpose. Upon completion, the noodle ranges are adhered with a certification label, recognized nationally, and ready to be operated.
As our noodle ranges are custom-built, the photos are for illustration purposes only, and sizes/style may vary slightly. Our company will fabricate it as per our standards. Thank you.
Specifications
constructed mainly out of stainless steel 304 for the front, top and sides, with rear metal chimney for exhausting heat
features a standard water-cooled top surface
includes a custom built-in pot for water
regular cast iron jet burner (natural gas)
burner manual control valve at the front
BTU/hr: 105,000 (23-tip jet burner X 1) or 210,000 (23-tip jet burner X 2), depending on number of compartments (rectangular or circular)
Dimensions (approx.)
Length: can be customized depending on requirement
Depth: ~ 39”
Height: ~ 63” (measured to the chimney)
Certification
certified for use in Canada
